Built to last. Built to perform.

High-performance, high-quality cylinders for every application - including yours. If you have certain specifications ready for your custom cylinder, contact us and let us send you a quote for your unique product.

Pnuematic Cylinders

Sheffer's pneumatic actuators and cylinder series covers a wide range of applications from custom tie-rod cylinders to NFPA cylinders. With bores ranging from 3/4" thru 14" as catalog standards and larger as custom, with pressure ratings up to 250 PSI, these reliable, long-lasting cylinders bring Sheffer performance anywhere you require linear pneumatic actuators.

  • A Series - heavy-duty pneumatic cylinders
  • MA Series - medium-duty pneumatic cylinders
  • C20 Series - cast-iron pneumatic cylinders
  • AA Series - low-cost aluminum pneumatic cylinders
  • CL Series - heavy-duty clamp pneumatic cylinders

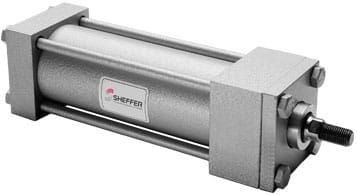

A Series: Heavy Duty



Bore: 1-1/8" thru 14" cataloged standards, up to 48" custom
Rating: 250 psi standard, higher as custom
Mountings: 20 cataloged mounts, specials available as required

  • ANSI, NFPA, JIC interchangeable dimensions
  • Aluminum tube standard, steel tube available
  • Lubed for life
  • Studded rod ends - 4 wrench flats
  • Hard chrome plated, case hardened piston rods
  • Ideal for demanding applications

For more information, download the Sheffer A Series brochure.

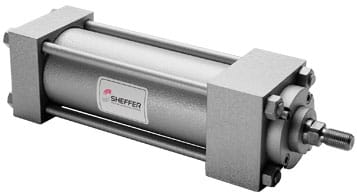

MA Series: Medium Duty



Bore: 1-1/2" thru 8"
Rating: 200 PSI
Mountings: 14 cataloged mounts

  • ANSI, NFPA, JIC (interchangeable dimensions)
  • Lubed for life
  • High tensile, special hard anodized aluminum tube
  • Aluminum head and cap for weight reduction
  • Economical OEM cylinders
  • Cushioned front, rear or both ends available

For more information, download the Sheffer MA Series brochure.

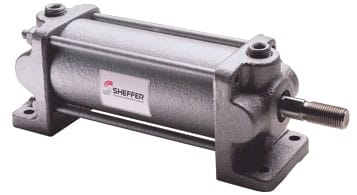

C 20 Series: Cast Iron



Bore: 1-1/2" thru 10" cataloged standards, specials available
Rating: 200 PSI
Mountings: 5 cataloged mounts

  • Extremely compact for limited space applications
  • Lubed for life
  • Economically priced
  • Cushioned front, rear, or both ends available
  • Hard chrome plated piston rods standard

For more information, download the Sheffer C 20 Series brochure.

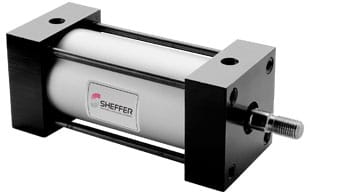

AA Series: Low Cost Aluminum



Bore: 1-1/2", 2", and 2-1/2" only
Rating: 200 PSI
Mountings: Universal mount, mounting kits available

  • Aluminum alloy body, head and cap
  • Hard chrome plated piston rod standard
  • Cushion front, rear, or both ends available
  • Lubed for life
  • Studded rod end - 4 wrench flats
  • Modified U-Cup seals for low friction, long life

For more information, download the Sheffer AA Series brochure.

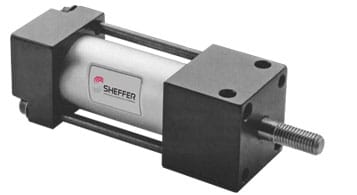

CL Series: Heavy Duty Clamp



Heavy Duty Clamp Cylinders Pneumatic And Hydraulic

Bore: 3/4" and 1-1/8" only
Rating: CLA 150 PSI pneumatic, CLH 250 PSI pneumatic/1,500 PSI hydraulic
Mountings: Universal mount and stud mount

  • Double acting and single acting spring return/extend
  • Accessories for additional mountings
  • Lubed for life
  • Modified U-Cup seals for low friction, long life
  • Very economical
  • Ideal for all types of clamping and tooling applications

For more information, download the Sheffer CL Series brochure.

Available in: Alabama, Arizona, Arkansas, N.W. Florida, S. Idaho, Kansas, Louisiana, Mississippi, W. Missouri, Montana, Nevada, New Mexico, W. North Dakota, Oklahoma, W. South Dakota, Texas, Utah and Wyoming
